Solar Powered Self contained AIS Marine Aids To Navigation For Buoy Beacon Bridge
Product Overviews:
This self-contained AIS AtoN is designed for buoys and fixed structures,
featuring a fully compliant AIS transponder within a rugged enclosure.
With four integrated solar panels and a GPS module,
the device offers large battery capacity and the highest energy efficiency,
ensuring sustained, efficient operation in all conditions.
Features and benefits:
- Solar power for easy installation and low maintenance: Streamlines setup and reduces operational costs by leveraging renewable energy sources.
- Resilient fiberglass housing with IP68-rated water and dust protection: Ensures long-lasting durability and protection against environmental elements.
- Integrated GPS module ensures precise and reliable navigation: Enhances the accuracy of location tracking, critical for effective navigation.
- Intelligent battery management with high capacity and multiple pack configurations: Provides flexibility and efficiency in power management, extending operational time.
- Supports messaging protocols NO.6 and NO.21 for versatile communication: Improves the system’s capability to handle various communication needs effectively.
- Guarantees 30 days of sustained battery autonomy: Ensures dependable power supply and reduces the need for frequent maintenance or replacements.
Specifications:
| Genaral Spec | Body material | Fiberglass |
| Bracket Material | S316 tainless steel aluminum |
| Operating temperature range | -35°C to +°60C |
| IP Rating | IP68 |
| Life time | 10 years |
| Weight | 2.5KGS |
| AIS Spec | Operation frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK |
| Frequency error | ±0.5kHz |
| Transmission power | ≤12.5W |
| Average power consumption | ≤0.05W |
| Message format Messages | No. 21 and NO.6,message periods are adjustable |
| Operating type | Type three (SOTDMA, autonomous working mode) |
| AIS antenna | Included, high gain omnidirectional antenna |
| Battery Spec | Battery type | Lithium |
| Battery nominal voltage | 7.4V |
| Battery autonomy | 30 Days |
| Battery capacity: | 7.4V/10.4AH |
| Operating Voltage | DC 5.5-8.1V |
| Recharging Voltage | 8.4V |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X1.8W |

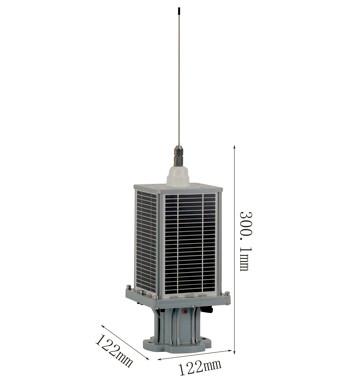

Dimension Drawing:
Applications:
Buoy,beacon,bridge,light tower and other fixed structures
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
